Product Details

  • Name: 200KW industrial and commercial off grid hybrid roof solar power generation system monocrystalline silicon photovoltaic panel photovoltaic power station

    Parameter Table:

    Num

    Name

    Specification

    Unit

    Qty

    1

    solar panel

    625w

    PCS

    320

    2

    Hybrid inverter

    100KW

    units

    2

    3

    Energy storage system

    customized

    block

    1

    4

    Hybrid system distribution cabinet

    customized

    set

    1

    5

    Photovoltaic DC line

    4mm

    metre

    600

    6

    Photovoltaic connector

    MC4

    set

    40

    7

    Battery connection cable

    customized

    set

    1

    8

    Installation Tools

    /

    set

    1



    Item

    Specification

    Qty

    625W N-type Double Glass Solar Panel

    Voltage: 56.76Vmp

    320

    Weight: 34.6kg

    Size: 2465*1134*35 mm



    Item

    Specification

    Qty

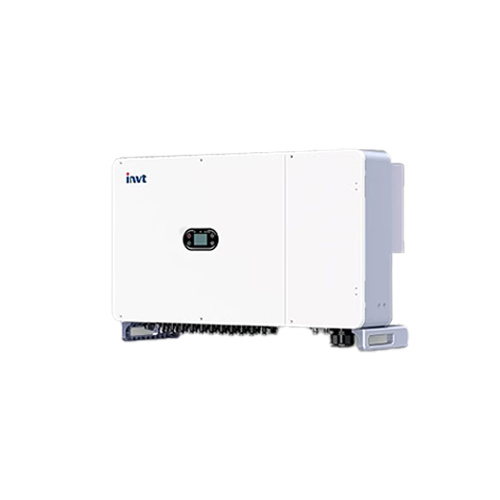

    Hybrid inverter

    Rated Power: 100KW

    		 2

    Maximum DC Voltage: 1100V

    MPPT Voltage Range: 180V ~1000V

    MPPT Tracking Quantity: 9

    Communication Output: 400V50Hz



    Item

    Specification

    Qty

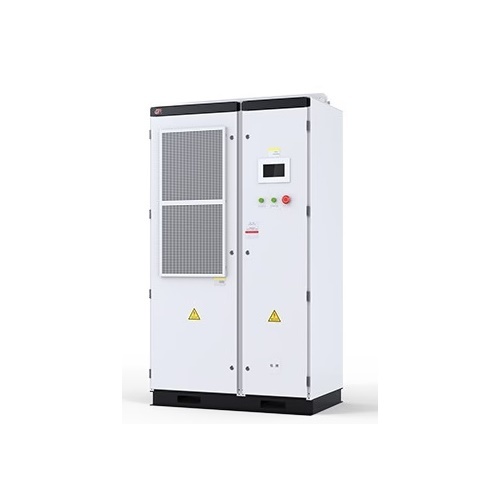

    Energy storage system

    Battery: 240V (customizable)
    Capacity: 500Ah/750Ah/1000Ah (customizable)
    Size: Customizable
    Quantity: Customized

    1



    Item

    Specification

    Qty

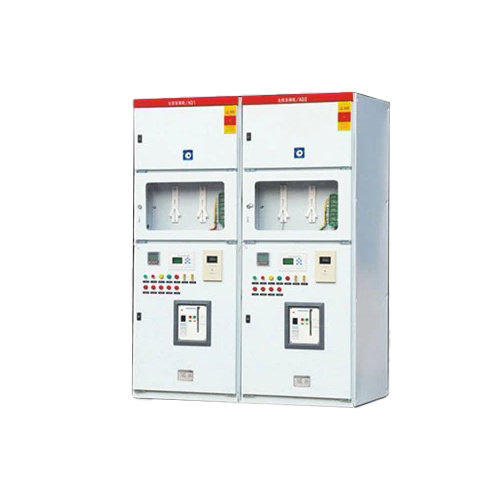

    Hybrid system distribution cabinet

    Customized

    1



    Item

    Specification

    Qty

    Installation bracket

    Carbon steel bracket
    Aluminum alloy bracket
    Residential roof (sloping roof)
    Commercial roofs (flat roofs and workshop roofs)
    Parking lot solar installation system

    1



    Item

    Specification

    Qty

    Photovoltaic Cable

    PV 4mm²

    6 rolls

    -40℃ ~ 90℃

    Minimum Order Quantity: 1 roll = 100m

    MC4 Connector

    Rated Current: 30A

    40

    Rated Voltage: 1500VDC

    Battery connection cable

    Strong insulation performance
    High flexibility
    Strong conductivity

    1



    Num

    Name

    Specification

    Unit

    		 Qty

    1

    Installation Tools

    /

    set

    		 1



Keyword:

Aluminum Alloy Photovoltaic Stents

What is a photovoltaic (PV) system?

A PV system converts sunlight directly into electricity using semiconductor materials, providing a renewable and clean energy source for various applications.

How do solar panels work?

Solar panels consist of multiple solar cells that absorb sunlight and generate direct current (DC) electricity through the photovoltaic effect. This DC electricity is then converted to alternating current (AC) by an inverter for use in homes and businesses.

What are the benefits of installing a PV system?

Installing a PV system can reduce electricity bills, decrease carbon footprint, increase property value, and provide energy independence by generating your own electricity.

How long do solar panels last?

Most solar panels come with a warranty of 25 years and can continue to produce electricity beyond that period, though their efficiency may decrease slightly over time.
