Product Details

  • Name: 10kW off grid solar energy system, household rooftop lithium iron battery photovoltaic system

    Material List:

    Num

    Name

    Specification

    Unit

    Qty

    1

    solar panel

    625w

    PCS

    16

    2

    Inverter control integrated machine

    5KW

    units

    1

    3

    DC combiner box

    3 inputs and 1 output

    units

    1

    4

    Solar battery (lithium iron)

    51.2V100AH

    block

    2

    5

    Installation bracket

    customized

    set

    1

    6

    Photovoltaic DC line

    4mm

    metre

    100

    7

    Photovoltaic connector

    MC4

    set

    1

    8

    Battery connection cable

    customized

    set

    1



    Item

    Specification

    Qty

    625W N-type Double Glass Solar Panel

    Voltage: 56.76Vmp

    16

    Weight: 34.6kg

    Size: 2465*1134*35 mm



    Item

    Specification

    Qty

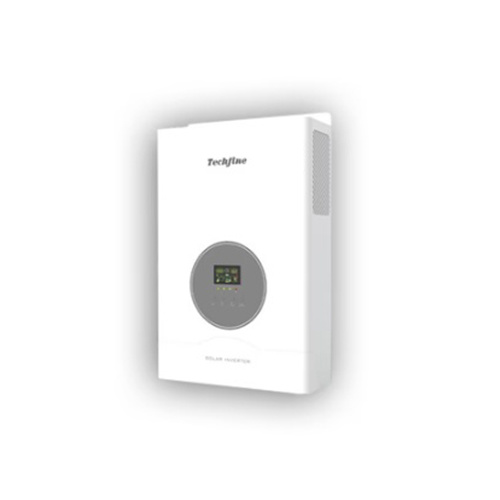

    Inverter control integrated machine

    >UPS automatic switching, mains charging, AVR voltage regulation (Level 3)
    >Built in MPPT solar controller 30A-100A (optional)
    >Strong inverter capability, one-time soft start, triple peak output power
    >Equipped with comprehensive protection functions such as overload, high voltage, low voltage, and short circuit

    1



    Item

    Specification

    Qty

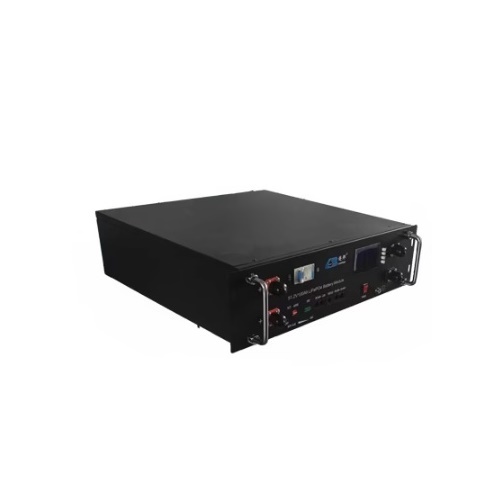

    Solar battery (lithium iron)

    High safety and good high-temperature performance
    Good cycle life and low cost
    Rust proof, waterproof, advanced engineering
    Highly sealed, IPX8 waterproof

    2



    Item

    Specification

    Qty

    DC combiner box

    Roof style structural thickened sheet metal
    Sturdy and sturdy, rainproof and corrosion-resistant
    Porous ventilation, smooth outlet without damaging the cable
    Hanging wall holes to prevent rainwater leakage

    1



    Item

    Specification

    Qty

    Installation bracket

    Carbon steel bracket
    Aluminum alloy bracket
    Residential roof (sloping roof)
    Commercial roofs (flat roofs and workshop roofs)
    Parking lot solar installation system

    1



    Item

    Specification

    Qty

    Photovoltaic Cable

    -40℃ ~ 90℃

    1

    Minimum Order Quantity: 1 roll = 100m

    Rated Current: 30A

    MC4 Connector

    Rated Voltage: 1000VDC

    1

    Cable Cutters and Strippers

    Battery connection cable

    Strong insulation performance
    High flexibility
    Strong conductivity

    1



Keyword:

Aluminum Alloy Photovoltaic Stents

What is a photovoltaic (PV) system?

A PV system converts sunlight directly into electricity using semiconductor materials, providing a renewable and clean energy source for various applications.

How do solar panels work?

Solar panels consist of multiple solar cells that absorb sunlight and generate direct current (DC) electricity through the photovoltaic effect. This DC electricity is then converted to alternating current (AC) by an inverter for use in homes and businesses.

What are the benefits of installing a PV system?

Installing a PV system can reduce electricity bills, decrease carbon footprint, increase property value, and provide energy independence by generating your own electricity.

How long do solar panels last?

Most solar panels come with a warranty of 25 years and can continue to produce electricity beyond that period, though their efficiency may decrease slightly over time.
