1KW wind solar hybrid system
Category:
E-mail:
Product Details
-
Name: 1KW wind solar hybrid system-home solar power wind turbine kits-Off grid
1KW Wind-Solar Hybrid System Material List
Name
Specification
Unit
Qty
Solar Panel
200W
Piece
1
Wind Generator (Without a pole)
300W
Set
1
Controller
12V 40A
Set
1
Battery
12.8V 200AH
Unit
2
Inverter
1KW
Set
1
Combiner Box
Customized
Set
1
PV DC Cable
4mm
Meter
100
PV Connector
MC4
Pair
5
Battery Connection Cable
Customized
Set
1
Item
Specification
Qty
200W Solar Panel
Voltage: 18.0Vmp
1
Weight: 12kg
Size: 150*670*30 mm
Model
JLS-300
Rated power
300W
Max power
310W
Nominal voltage
12V/24V
Start-up wind speed
2.0m/s
Rated wind speed
13m/s
Survival wind speed
50m/s
Top net weight
6.5kg
Wind wheel diameter
1.25m
Number of blades
3/5
Blades material
Nylon fiber
Generator
Three phase ac permanent magnet generator
Controler system
Electomaget wind wheel yaw
Speed regulation
The wind Angle automatically
Workiing temperature
-40℃~80℃

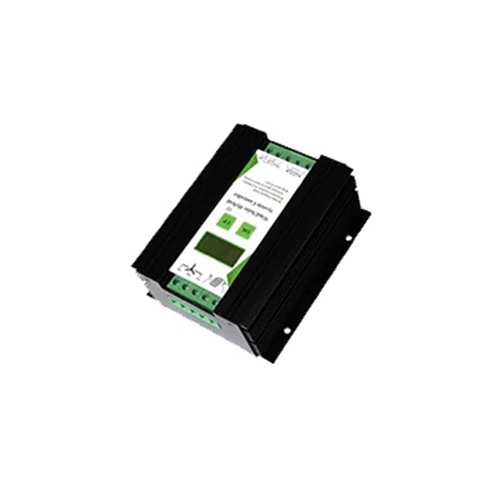

Model
SCD1230
SCD2430
SCD2450
SCD2460
SCD2480
System Rated Voltage
12V
24V
24V
24V
24V
Solar Panel Power
200W
300W
300W
400W
600W
Wind Generator Power
300W
300W
500W
600W
800W
Charging
40A
20A
23A
41.6A
50A
Equalization Charge (Adjustable)
14.7V ± 1%
29.4V ± 1%
29.4V ± 1%
29.4V ± 1%
29.4V ± 1%
Discharge Cutoff (Adjustable)
10.2V ± 1%
20.4V ± 1%
20.4V ± 1%
20.4V ± 1%
20.4V ± 1%
Undervoltage Recovery
11.2V ± 1%
22.4V ± 1%
22.4V ± 1%
22.4V ± 1%
22.4V ± 1%
Overvoltage Cutoff
17.5V ± 1%
35V ± 1%
35V ± 1%
35V ± 1%
35V ± 1%
Overvoltage Recovery
15V ± 1%
30V ± 1%
30V ± 1%
30V ± 1%
30V ± 1%
No-load Current (DC)
≤ 0.05A
≤ 0.05A
≤ 0.05A
≤ 0.05A
≤ 0.05A
Voltage Drop (DC)
≤ 0.5V
≤ 0.5V
≤ 0.5V
≤ 0.5V
≤ 0.5V
Control Mode
Wind turbine PWM charge, PWM load dump, PWM current limiting function
Display
LCD
LCD
LCD
LCD
LCD
Display Parameters
Voltage, Battery Voltage, Current, Load Mode
Protection Type
Lightning protection, solar reverse protection, battery reverse protection, battery overvoltage protection, overwind and overvoltage shutdown protection, overload protection, etc.
Cooling Mode
Heat sink
Heat sink
Heat sink
Heat sink
Heat sink
Operating Temperature
-25°C to +55°C
-25°C to +55°C
-25°C to +55°C
-25°C to +55°C
-25°C to +55°C
Operating Altitude
≤ 5500m (derating above 2000m)
Relative Humidity
0% to 90%, no condensation
Net Weight/Gross Weight
1.0/1.25kg
1.0/1.25kg
1.0/1.25kg
1.0/1.25kg
1.0/1.25kg
Product Dimensions (mm)
165 × 140 × 64
220 × 185 × 140
220 × 185 × 140
220 × 185 × 140
220 × 185 × 140
Item
Specification
Qty
Solar battery (lithium iron)
Good high temperature resistance performance
Highly sealed, IPX8 waterproof
Cold resistant, high temperature resistant, and corrosion-resistant
Rust proof and waterproof, strong conductivity, high current discharge4
Item
Specification
Qty
Inverter control integrated machine
>UPS automatic switching, mains charging, AVR voltage regulation (Level 3)
>Built in MPPT solar controller 30A-100A (optional)
>Strong inverter capability, one-time soft start, triple peak output power
>Equipped with comprehensive protection functions such as overload, high voltage, low voltage, and short circuit1
Item
Specification
Qty
Combination box
customized
1
Item
Specification
Qty
Photovoltaic Cable
PV 4mm²
1 rolls
-40℃ ~ 90℃
Minimum Order Quantity: 1 roll = 100m
MC4 Connector
Rated Current: 30A
5
Rated Voltage: 1500VDC
Battery connection cable
Strong insulation performance
High flexibility
Strong conductivity1
Keyword:
Aluminum Alloy Photovoltaic Stents
What is a photovoltaic (PV) system?
A PV system converts sunlight directly into electricity using semiconductor materials, providing a renewable and clean energy source for various applications.
How do solar panels work?
Solar panels consist of multiple solar cells that absorb sunlight and generate direct current (DC) electricity through the photovoltaic effect. This DC electricity is then converted to alternating current (AC) by an inverter for use in homes and businesses.
What are the benefits of installing a PV system?
Installing a PV system can reduce electricity bills, decrease carbon footprint, increase property value, and provide energy independence by generating your own electricity.
How long do solar panels last?
Most solar panels come with a warranty of 25 years and can continue to produce electricity beyond that period, though their efficiency may decrease slightly over time.
