SYSTEM CHARACTERISTIC
• Multiple certifications such as SWCC, lEC61400, CE, etc.
• Low-speed permanent magnet generator, direct drive gearless transmission design.
• Active pitch control technology ensures output power stability in strong wind.
• Multiple safety protection for mechanical, electromagnetic brakes and active yawing.
• Full-power inverter in power frequency isolation technology with multinational grid-tiecertification.
• SCADA remote real-time monitoring system.
• Suitable for small wind farms, smart grids, microgrid systems, etc
TECHNICAL PARAMETER
Manufacturer Xiamen Lianbang Technology Co.,LTD Country of origin China Parameter Specs Model LB25-100 Design class SWT Class IIIA Type Permanent magnet direct drive,three blade,horizontal axis,upwind Design life 20 years Rotor diameter 25m Tower height 30m Tower type tubular column Performance Rated power 100KW, 400 VAC, 50Hz/60Hz, 3-phase 3-line Power regulation Pitch control Rated rotation speed 52rpm Max rotation speed 62rpm Cut-in wind speed 3m/s Rated wind speed 11m/s Cut-out wind speed 25m/s Survival wind speed 52.5m/s Weight Blade 3*540 kg Nacelle&generator 9700 kg Tower 21000 kg Brake system Aerodynamic braking Active pitch control Mechanical braking Mechanical principal-axis brake Electromagnetic braking Electronic dumpload control Yawing &untwisting Yawing mode Electric Untwisting mode Auto untwisting Control system Control system Industrial PLC controller Inverter type Full-power inverter,power frequency transformer isolation Monitoring SCADA Cube 2.0 Generator Generator type Permanent magnet Drive mode Direct drive (gearless box) Rated voltage 400VAC Insulation grade F class Blade Blade material Glass fiber(FRP) Blade length 11.8 m Blade quantity 3 Tower Surface treatment Anti-rust painting Height 42m (24m/30m optional) Noise Noise level <58dBA Auxiliary power supply Normal operation ≤2kW Standby power demand ≤0.6kW PCS standby consumption ≤0.2kW Environment temperature Operation environment -20℃ to 50℃ Generator protection class IP54,ISO 12944-2 C5 Lightening protection Lightning receptors for blade tip connected to earth through loop.Anemometer and wind vane with separate lightning receptors. SYSTEM CONFIGURATION

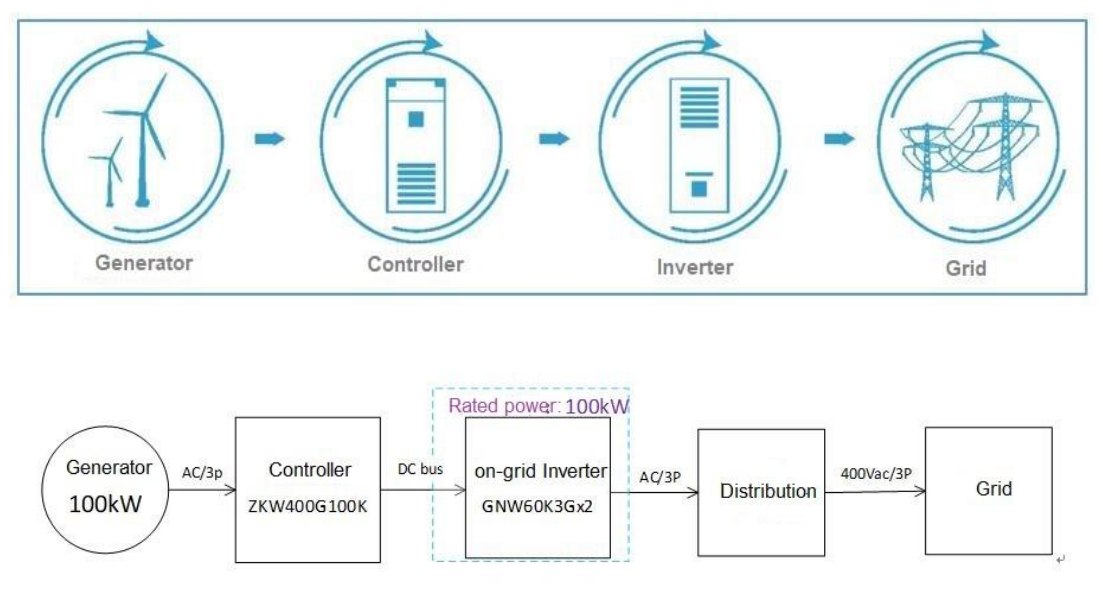

Wind turbine generator system is composed of wind turbine generator, on-grid controller and on-gridinverter.(see the photo)
PERFORMANCE

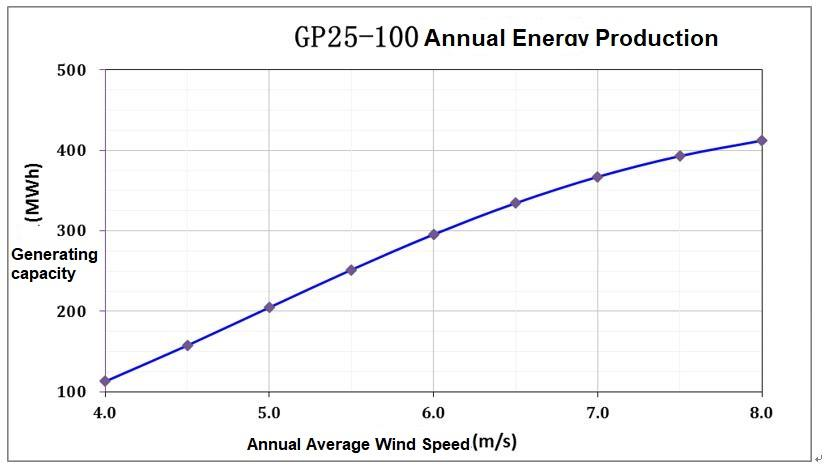

AWP(m/s) 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0 AEP(MWh) 112.7 157.5 204.8 251.7 295.6 334.5 367.2 393.1 412.3 ON-GRID CONTROLLER
Control parameter Output voltage range 0～750Vdc Rated rotation speed 52rpm Max controlling rotation speed 62rpm Yawing speed 0.55/s Yawing accuracy <3.2° Environment parameter Working environment -20℃~+50℃ Storage environment -30℃~+60℃ Relative humidity <90%RH Elevation <1000m ON-GRID INVERTER
Model GNW60K3G DC input Working voltage range 380V ～680VDC Max input voltage 750VDC On-grid output Rated output power 60kW Rated grid voltage 400V±15%3-phase 3-line Rated working frequency 50/60Hz±5% Power factor (cosθ) >0.99 Max inverter power ≥94% Harmonic(THD) Total current harmonic <5%, each time<3%(rated power) Display &communication Display panel LCD Communication interface RS485 System application Inverter quantity 2 units System rated power 100kW TOWER and FOUNDATION

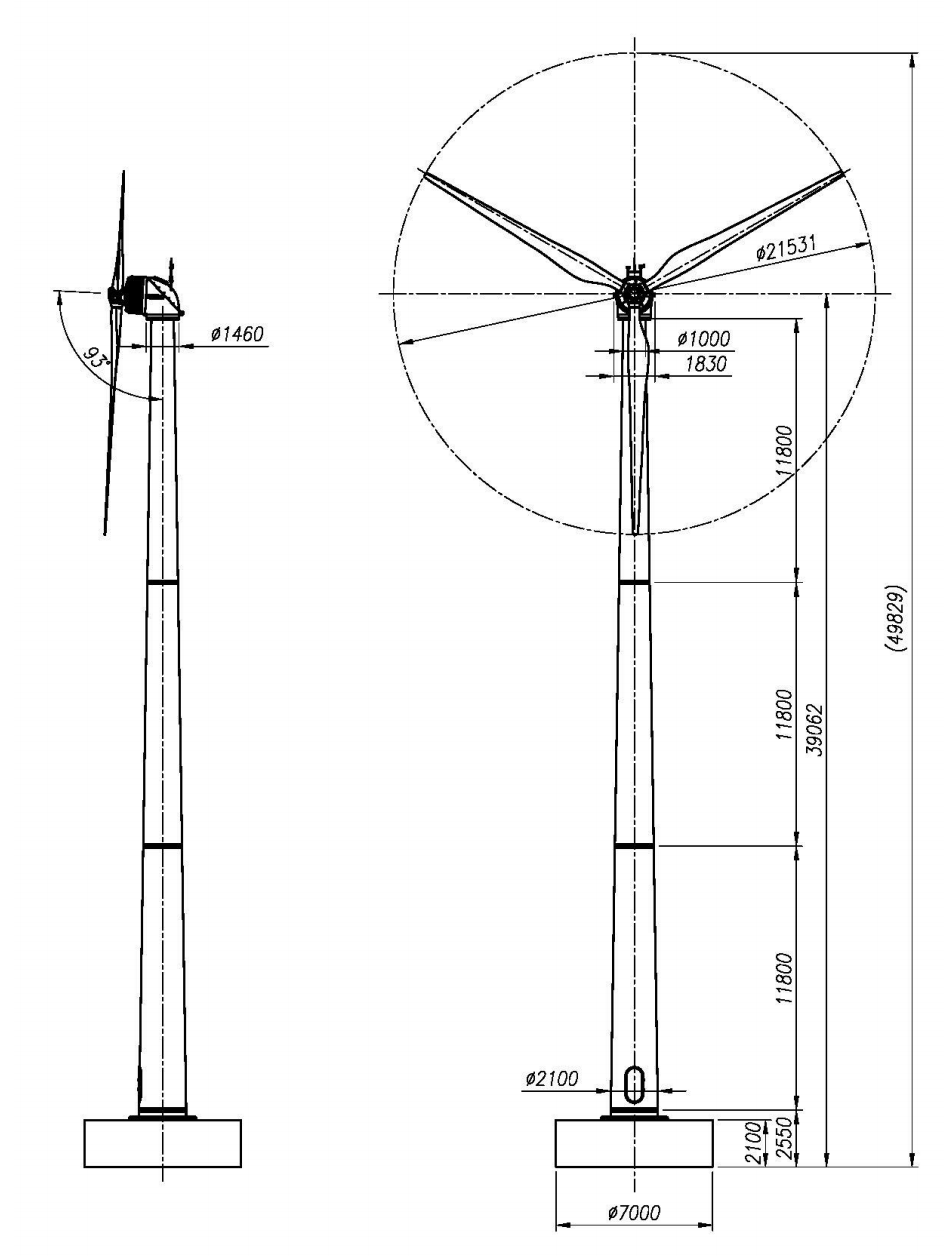

Tower model TD1-42 1IA Height 42m Section 4 Wall thickness 10mm Material Q345 Flange diameter 1000mm (upper)/2100mm(bottom) Surface treatment Hot-dip galvanizing /painting Weight 21000kg Dimension (reference value) 9mx9mx1m
SCADA REMOTE MONITORING
• Remote monitoring system SCADA CUBE2.0:
• Data connection interaction via wired/wireless network.
• Real-time monitoring operating and abnormal condition.
• Visual operating interface, real-time monitor wind turbinesgenerating power.
• Generation energy production, meteorological data, WTGs action &waming and historical data queries and data analysis report.
