Wind rotor

The wind rotor is used to convert the kinetic energy of the air into the mechanical energy ofwind rotor. The wind turbine adopts a three-blade, upwind type which is actively adjusted throughpitch mechanism. The blade material uses reinforced fiber glass.

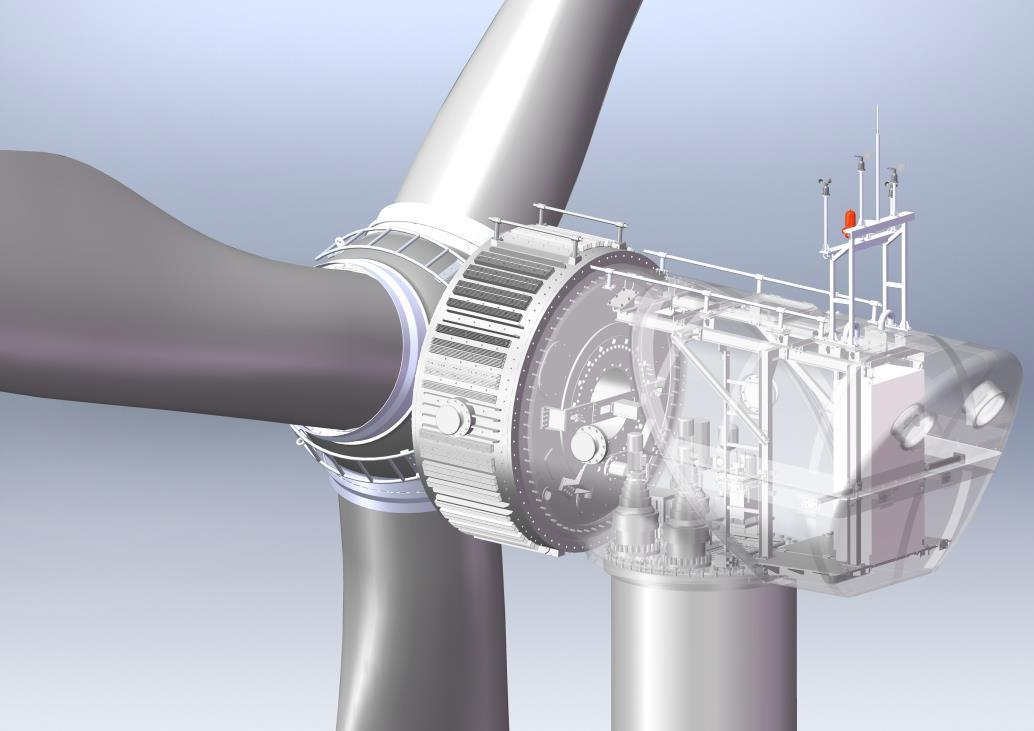

Nacelle

The nacelle is connected to generator and tower, which contains yawing transmission system.damper control system, wind turbine control system, sensors, wind measurement system, aviationwarning system, staff passage, etc., as shown in the figure,

Three-blade independent pitch mechanism

Pitch of WTG adjusts the windward angle of blades, and its main functions are poweradjustment and rotation speed control. it mainly includes hub, pitch reducer, drive motor, pitchcontroller, angle speed detection device, etc. The hub adopts a spherical structure, which hasgood castability and high strength, as shown in the left picture below:

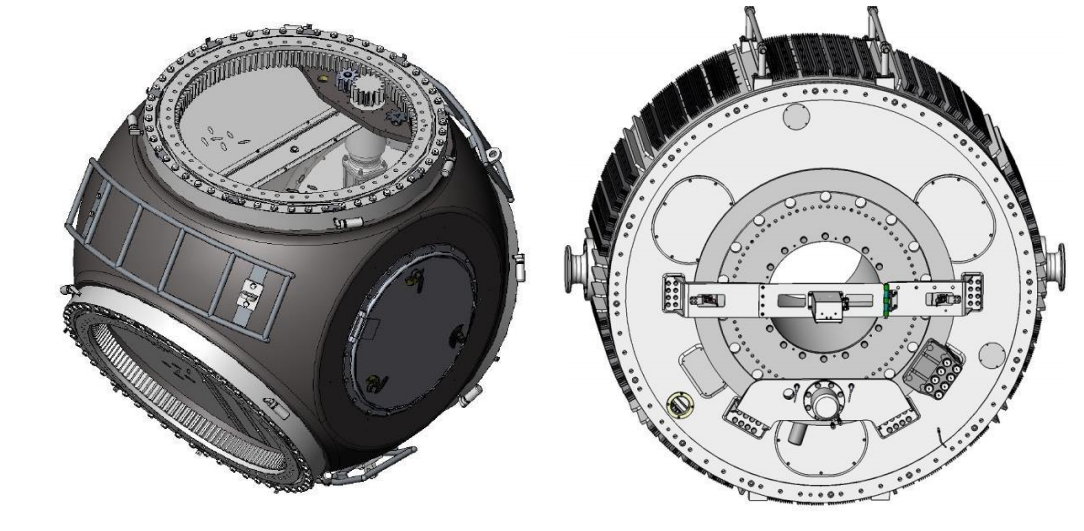

Generator & braking system

The generator converts the mechanical kinetic energy of wind rotor into electrical energy. itis composed of stator, rotor, brake disc, braking system and detection device. The main shaft ofWTG is braked to realize blade braking, which is composed of brake disc and hydraulic brakingsystem, as shown on the right above. As shown in the figure.



Yawing system

Wind turbine adopts active yawing to direct wind and consists of three yaws drive devices.yaw angle detection device, twisting detection device and hydraulic brake. Yaw braking isaccomplished by yaw reduction motor, which uses an electromagnetic brake.



Lubrication system

The lubrication system of WTG consists of automatic lubrication and manual lubrication. Theyaw pivotal bearing and the front and rear main shaft lubrication of the generator are independentautomatic lubrication systems. The three independent pitch bearings are independent lubricationsystems and each bearing position is equipped with waste oil collection bottle.



Tower

Tower mainly plays the role of supporting nacelle, generator and wind rotor. it consists oftower itself, ladder, lighting and ladder safety protection devices. Each floor of tower is equippedwith a platform for installation and rest, etc.



2.Technical parameter

Wind turbine generator system parameter

Manufacturer	Xiamen Lianbang Technology Co.,Ltd
Country of origin	China
Parameter	Specs
System model	LBGP56-500、LBGP56-400
Device model	LB56-500、LB56-400
Design standard	IEC61400-1、NBT 31107-2017 WTGS with low wind speed
Design class	IEC S(DIIA)
Type	Permanent magnet direct drive,three blades,horizontal axis,upwind
Design lifespan	20 years
Rotor diameter	56m
Hub height	approximately 51m
Tower type	Tubular column
Performance
Power regulation	Individual pitch control
Rated power	500kW、400kW
Swept area	4.92 m2/kw、6.15 m2/kW
Rated rotation speed	29rpm、28rpm
Max rotation speed	33rpm
Cut-in wind speed	3m/s
Rated wind speed	10.5m/s、9.5m/s
Cut-out wind speed	18m/s(10min),22m/s(10s)
Survival wind speed	52.5m/s



Wind turbine component parameter

Weight
Blade	3*2.5t
Nacelle&generator	About 28t
Tower	42t@49m
Brake system
Aerodynamic brake	Active pitch control
Mechanical brake	Mechanical main-shaft brake
Electromagnetic brake	Electronic dump load control
Yawing &untwisting
Yawing mode	Electric
Untwisting mode	Auto untwisting
Angle of twisting	+1080°(+3 circles)
Control system
Control system	Industrial PLC controller
Inverter type	Full-power inverter
Monitoring	SCADA Cube 3.0
Generator
Generator type	Permanent magnet
Drive mode	Direct box(gearless box)
Rated voltage	400VAC
Insulation grade	F class
Blade
Blade material	Glass fiber(FRP)
Blade length	27m
Blade quantity	3
Tower
Surface treatment	Anti-rust painting
Height	49m
Other
Noise level	<58dBA(@79m)
Device position	Converter is placed into the bottom of tower. Others are placed inside of nacelle.
Lightening protection	Lightning receptors for blade tip connected to earth through loop. Anemometer and wind vane with separate lightning receptors.



Environment request

Environment temperature
Working environment	-20℃~+50℃
Storage environment	-30℃~+60℃
Relative humidity	≤95%
Elevation	≤2000m,>2000m,derating operation
Generator protection class	IP54、ISO12944-2 C5
Other environment request	Conform to standard of EC 60721-2-1
Ground resistance	≤4Ω



Grid connection request

Grid connection request
On-grid voltage range	400V±15%
Allowable frequency range	47.5 Hz~51.5 Hz
Allowable voltage unbalance	≤3%
Interruption duration	≤7 days
Grid connection access standards	Distribution grid connection series GB standard
Auxiliary power supply
Normal operation	≤8kW,3P5L
Standby power	≤1.8kW
PCS standby consumption	≤0.6kW



3. System configuration

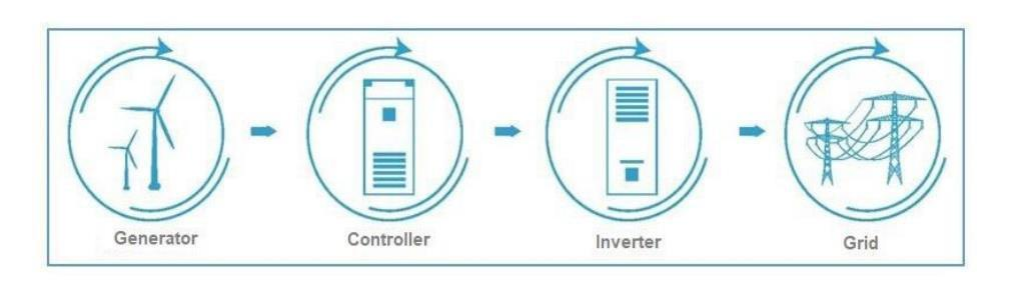

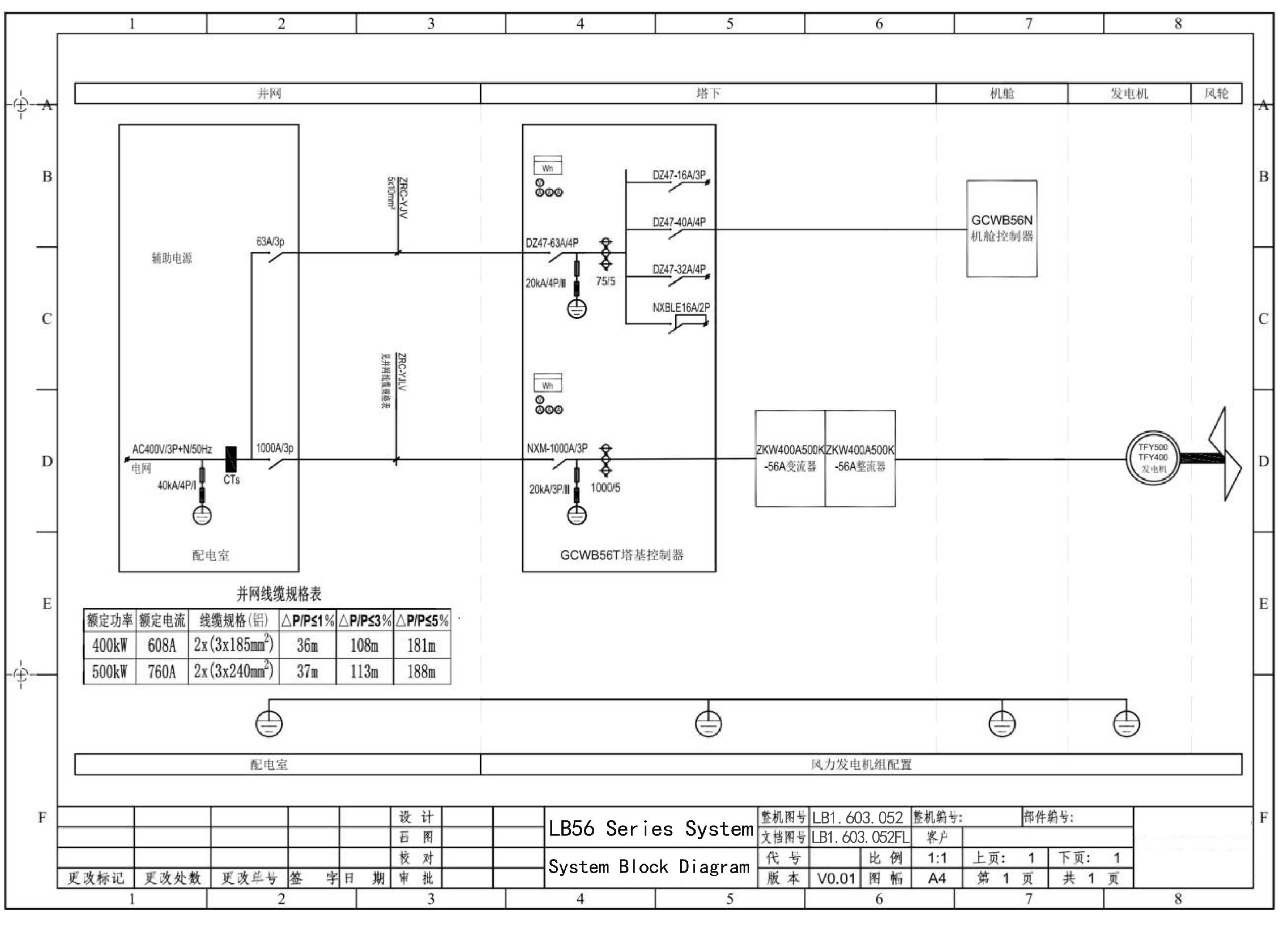

System connection diagram

Wind turbine generator system is composed of wind turbine generator, on-gridcontroller and on-grid inverter. (see the following photo)



System electrical drawing



4. Performance

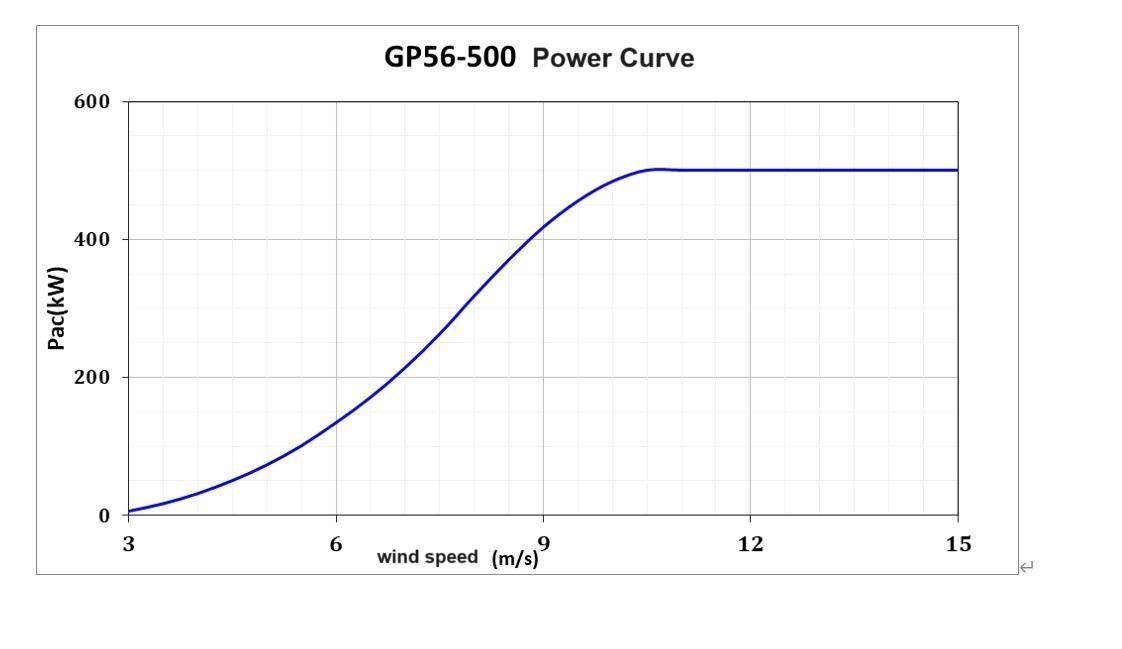

LB56-500 Power Curve



wind speed(m/s)	3.0	3.5	4.0	4.5	5.0	5.5	6.0	6.5
power(kW)	5.8	16.8	31.5	50.2	73.0	100.8	134.1	171.0
wind speed(m/s)	7.0	7.5	8.0	8.5	9.0	9.5	10.0	10.5
power(kW)	213.8	262.7	317.8	370.3	417.4	455.5	483.8	500.0
wind speed(m/s)	11.0	11.5	12.0	12.5	13.0	14.0	15.0	......
power(kW)	500.0	500.0	500.0	500.0	500.0	500.0	500.0	......



Usage instruction for power curve:

1. Data source: data source of power curve listed on the table is the result of calculationbased on the theoretical aerodynamic efficiency data of blades and efficiency of eachcomponent of wind turbine generator system, which is equivalent to the data under standardair density (1.225g/L).

2.  Reference standard:lEC 61400-12-1，all data sources are 10-minute averages.

3. Application concern: when evaluating the site, power curve needs to be converted accordingto the actual air density of the site location. For related conversion methods, please refer toIEC 61400-12-1.

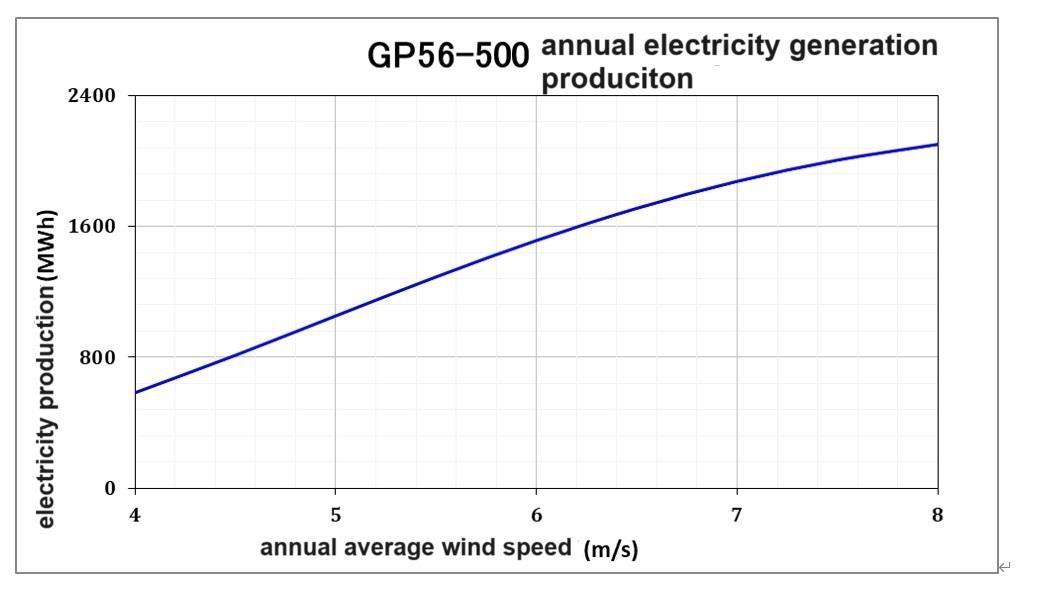

LB56-500 annual electric production



annual average wind speed (m/s)	4.0	4.5	5.0	5.5	6.0	6.5	7.0
annual electricity production (MWh)	583	812	1052	1291	1513	1709	1874
annual electricity production (10MWh)	58.3	81.2	105.2	129.1	151.3	170.9	187.4
equivalent hours (h)	1166	1623	105.2	2581	3026	3419	3748



Usage instructions for electricity generation:

1. Data source: the electricity generation is a theoretical value calculated according tocalculation method of lEC 61400-12-1 based on the above power curve

2. Reference standard: lEC 61400-12-1, assuming that the wind distribution is Rayleighdistribution.

3. Application concerns: actual electricity generation of WTG is related to factors such as sitetemperature, altitude, wind distribution, nearby obstacles, over-limit environment, and gridtransmission conditions.

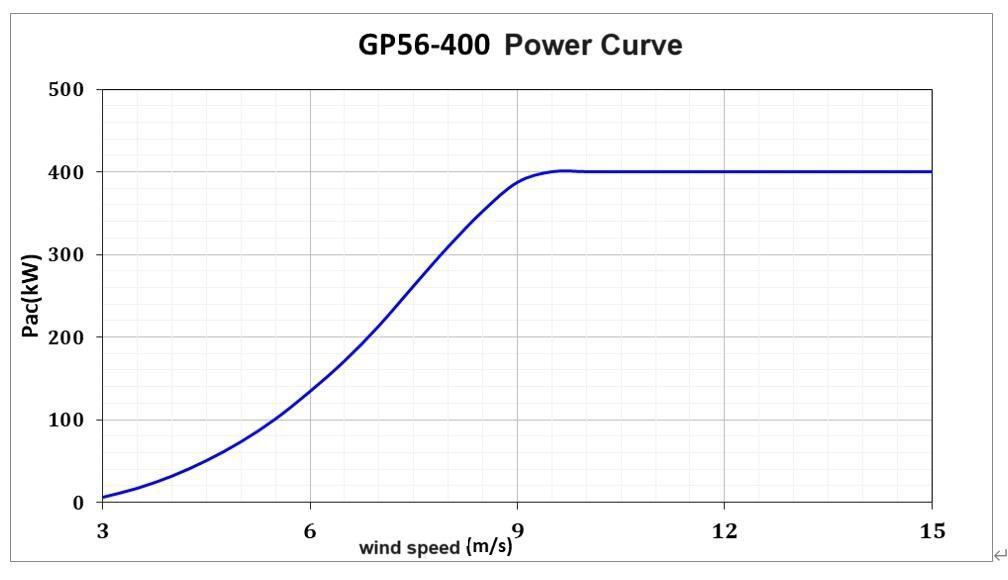

LB56-400 power curve



wind speed(m/s)	3.0	3.5	4.0	4.5	5.0	5.5	6.0	6.5
power(kW)	5.8	16.8	31.5	50.2	73.0	100.8	134.1	171.0
wind speed(m/s)	7.0	7.5	8.0	8.5	9.0	9.5	10.0	10.5
power(kW)	213.8	261.9	309.3	352.4	387.2	400.0	400.0	400.0
wind speed(m/s)	11.0	11.5	12.0	12.5	13.0	14.0	15.0	......
power(kW)	400.0	400.0	400.0	400.0	400.0	400.0	400.0	......



Usage instructions for power curve:

Data source: data source of power curve listed on the table is the result of calculation basedon the theoretical aerodynamic efficiency data of the blades and the efficiency ofeachcomponent, that is equivalent to the data under standard air density(1.225g/L).

Reference standard: lEC 61400-12-1, all data sources are 10-minute averages.

Application concern: when evaluating site, power curve needs to be converted according5to the actual air density at the site. For relevant conversion methods, please refer to lEC61400-12-1.

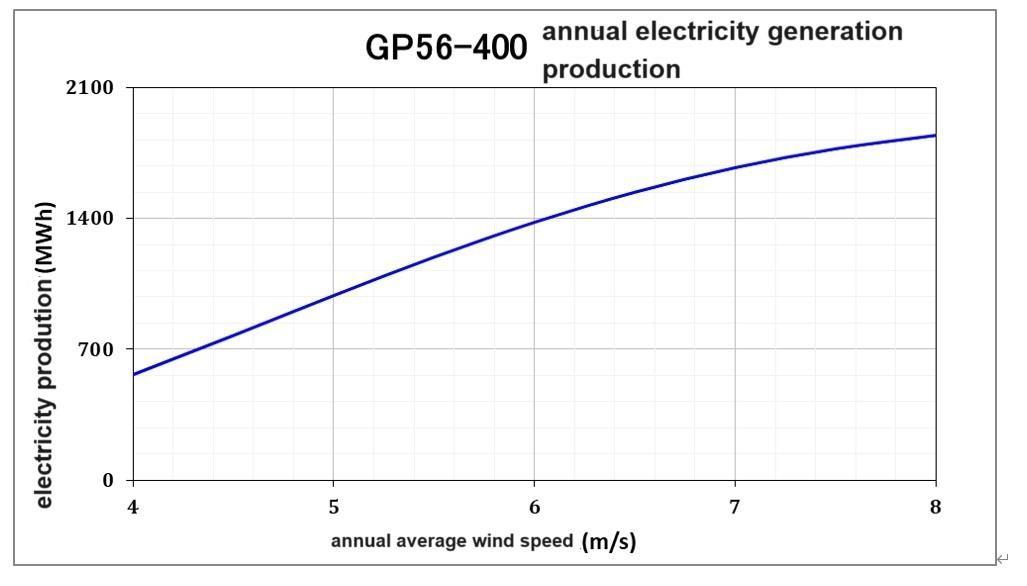

LB56-400 annual electric production



annual average wind speed (m/s)	4.0	4.5	5.0	5.5	6.0	6.5	7.0
annual electricity production (MWh)	567	776	989	1194	1379	1539	1670
annual electricity production (10MWh)	56.7	77.6	98.9	119.4	137.9	153.9	167.0
equivalent hours (h)	1417	1940	2473	2984	3448	3849	4176



Usage instructions for electricity generation production:

3. Data source: electricity generation production is a theoretical value calculated according tothe calculation method of lEC 61400-12-1 based on the above power curve.

4. Reference standard: lEC 61400-12-1, assuming that the wind distribution is Rayleighdistribution.

5. Application concerns: actual power generation production of WTG is related to factors such9as site temperature, altitude, wind distribution, nearby obstacles, over-limit environment. andgrid transmission conditions.

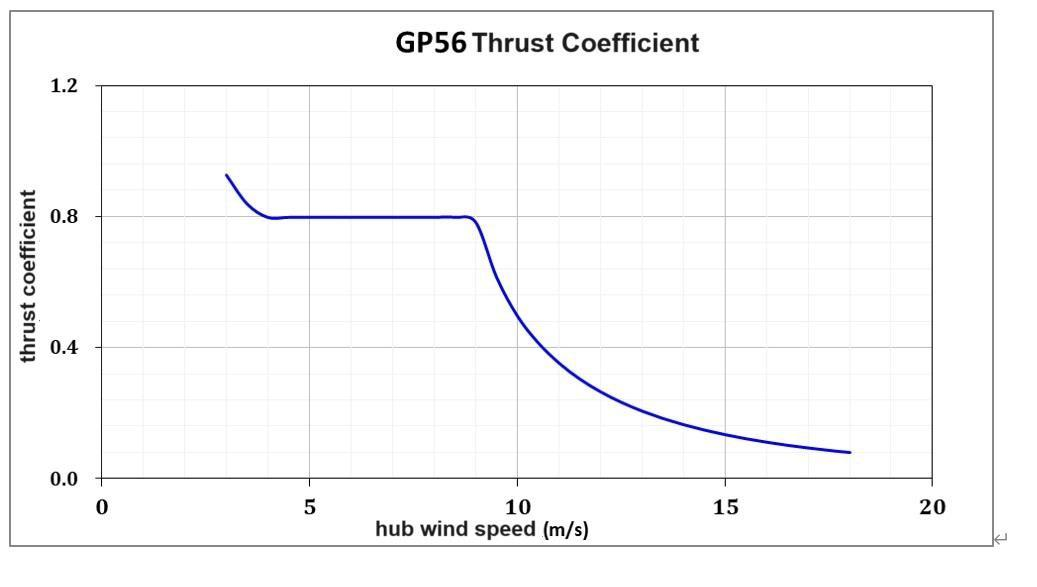

Thrust coefficient



Wind speed (m/s)	Thrust coefficient	Wind speed (m/s)	Thrust coefficient	Wind speed (m/s)	Thrust coefficient	Wind speed (m/s)	Thrust coefficient
3.0	0.9270	7.0	0.7980	11.0	0.3534	15.0	0.1347
3.5	0.8387	7.5	0.7980	11.5	0.3049	15.5	0.1225
4.0	0.7978	8.0	0.7980	12.0	0.2656	16.0	0.1119
4.5	0.7979	8.5	0.7980	12.5	0.2335	16.5	0.1025
5.0	0.7979	9.0	0.7826	13.0	0.2068	17.0	0.0943
5.5	0.7980	9.5	0.6150	13.5	0.1843	17.5	0.0869
6.0	0.7979	10.0	0.4969	14.0	0.1652	18.0	0.0804
6.5	0.7980	10.5	0.4151	14.5	0.1488



Thrust coefficient illustration:

3. Data source: thrust coefficient is a theoretical value obtained by Bladed software based onWTG data simulation.

4. Reference standard: lEC61400-1, thrust coefficient is the steady-state operating value ofWTG.

5. Application concerns: actual thrust coefficient is related to factors such as s instantaneouswind speed, instantaneous rotational speed, pitch angle, blade surface roughness, andenvironment.



Electronic control system

Wind turbine generator control system includes the core control unit of wTG, pitch drivecontrol, yaw drive control, environmental monitoring, human-computer interaction, and powerconversion, that realizes automatic operation control of WTG and maximizes wind energy.Utilization and processing and recording of various events have the following characteristics,

1)Hardware stability & reliability: PLC-based distributed control system, using matureCANopen and EtherCAT buses for system connection.

2)software maturity& completeness: standard wind turbine code library and control strategywith superior performance in electricity generation effciency improvement and load control.

3)Pitch control fexibility: use different control strategies under different working conditionssuch as light wind start-up section, rated wind speed section, strong wind control section.wind speed over-limit, etc. to maximize the wind energy utilization and safe operation ofWTG.

4)Wind MPPT : combined with real-time air density and dynamically adjust the torque controlparameters to ensure MPPT of wind energy Cp.

5)Intelligent yawing strategy: intelligent untwisting and wind-direction strategies balancewind-direction accuracy and action frequency to improve wind-catching ability.

6)Comprehensive protection:complete wind turbine protection system with multi-levelprotection strategies to maximize utilization.

7)Load optimization control: flexibility control, tower resonance zone vibration isolation.strong wind speed suppression, pitch rate flexible adjustment, etc.

8)Intelligent monitoring & diagnosis: complete status code, protection logic and user rights8)management to maximize safety of WTG.

9)Efficient operation & maintenance troubleshooting: abundant operation, failure, operationlogs and failure recording records enable efficient operation & maintenancetroubleshooting.

10)Abundant environmental monitoring: WTG has various monitoring functions such as windspeed, wind direction, air pressure, temperature, humidity, vibration, etc.

11)Convenient monitoring & debugging: real-time data monitoring and display of wTG, andLoT operation screen realizes the simultaneous uploading of operating data to the cloud.

12) Simple power grid connection: using a converter that meets the grid standards, which canbe directly connected to the low-voltage 400V distribution network.



On-grid controller

Control parameter
Master controller	Industry PLC controller
Yawing speed	0.55°/s
Yawing accuracy	≤3.2°
Way of pitch	Three-blade independent pitch
Pitch speed	≥8/s
Pitch accuracy	≤0.2°
Pitch backup power	Super capacitor
Display       &Communication
Display panel	LCD
Communication interface	RS485、RJ45 internet access



On-grid converter

System model	LBGP56-500、LBGP56-400
Generator side parameter
Generator side working voltage range	3 phase 200~460Vac
DC bus working volage range	600V～    720VDC
Brake unit configuration	Built-in control and dump-load resistors
Network side parameter
Rated output power	500kw、400kW
Rated grid voltage	400V±15%3 phase 3 lines
Rated working frequency	50/60Hz±5%
Power factor (PF)	>0.99 (0.85L~0.85C之间可调)
Maximum inverter efficiency	≥97%
Harmonic content(THD)	Total current harmonics <5%,each time <3%(rated  power)
Grid-tie protection function	Overvoltage,undervoltage,overfrequency,underfrequency,unbalance protection,etc.
Other grid-tie functions	Low voltage ride through, islanding protection



6. Tower & Foundation

Device model	LB56-500、LB56-400
Tower model	TD162290-49
Height	49m
Section	3
Thickness	10mm-14mm
Weight	42t
Material	Q355ND
Flange diameter	1620mm(upper)/2900mm(bottom)
Surface treatment	Painting
Base reference value	φ12mx1.6m(tower 49m)



Foundation construction needs to go through start-up procedures, bring in machine tools andmaterials, excavation and leveling ofthe foundation pit, excavation of cable trenches and masonrymanholes, pre-embedding of ground rods and cushion formwork and pouring (C25), installationof foundation sections (crane 25 tons), the production and binding of embedded parts, formworkcutting and supporting, foundation pit pouring (C35), and foundation maintenance will take at least 20 days.

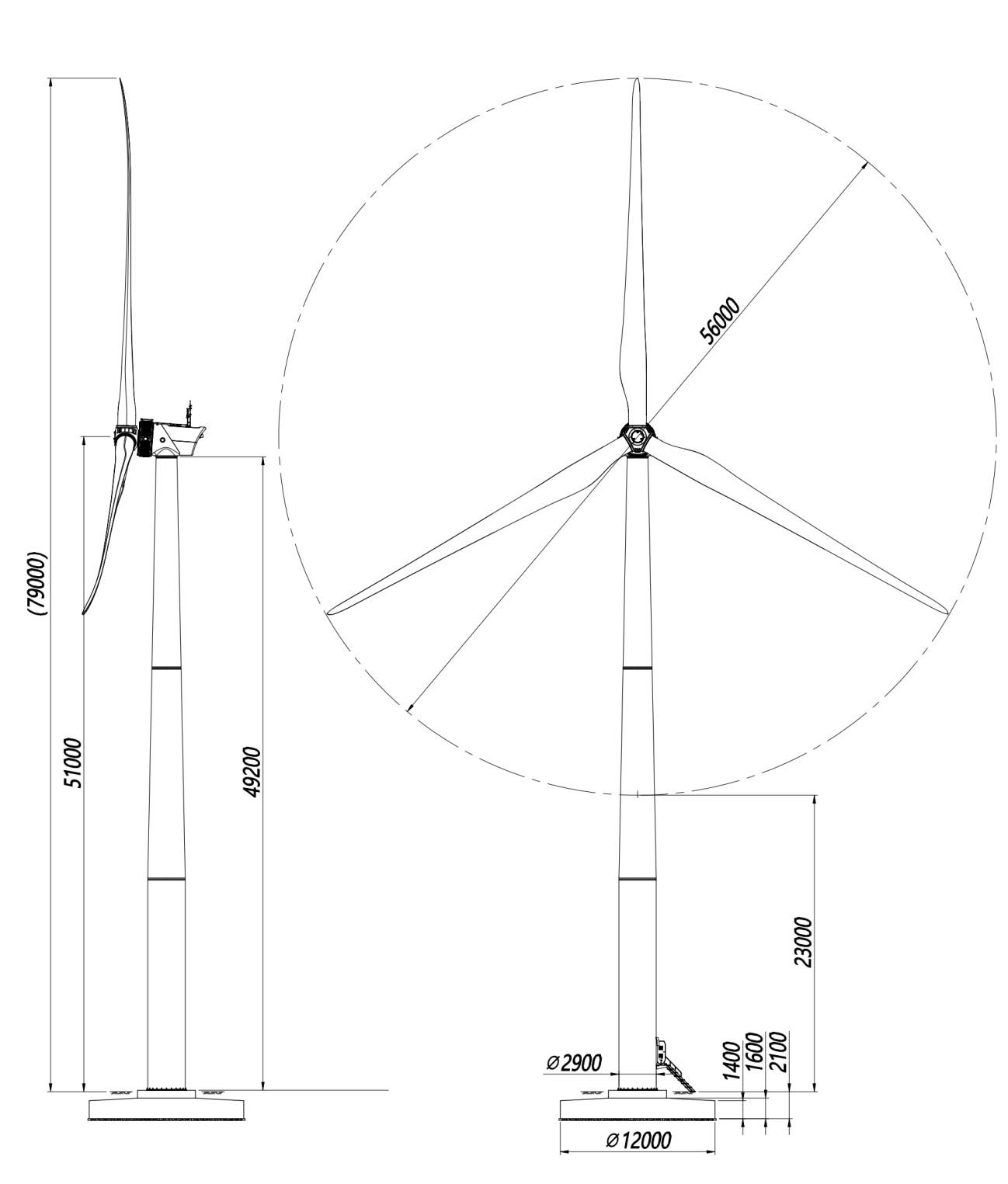

6.1 Overall appearance diagram



6.2 Upper foundation load

Load case	Tower Mxy[kNm]	Tower Mz[kNm]	Tower Fxy[kN]	Tower Fz[kN]	Safety factor
Normal run load case	4007	358	98	-674	1.0
Ultimate load case	13646	245	318	-924	1.35



6.3 Reference foundation

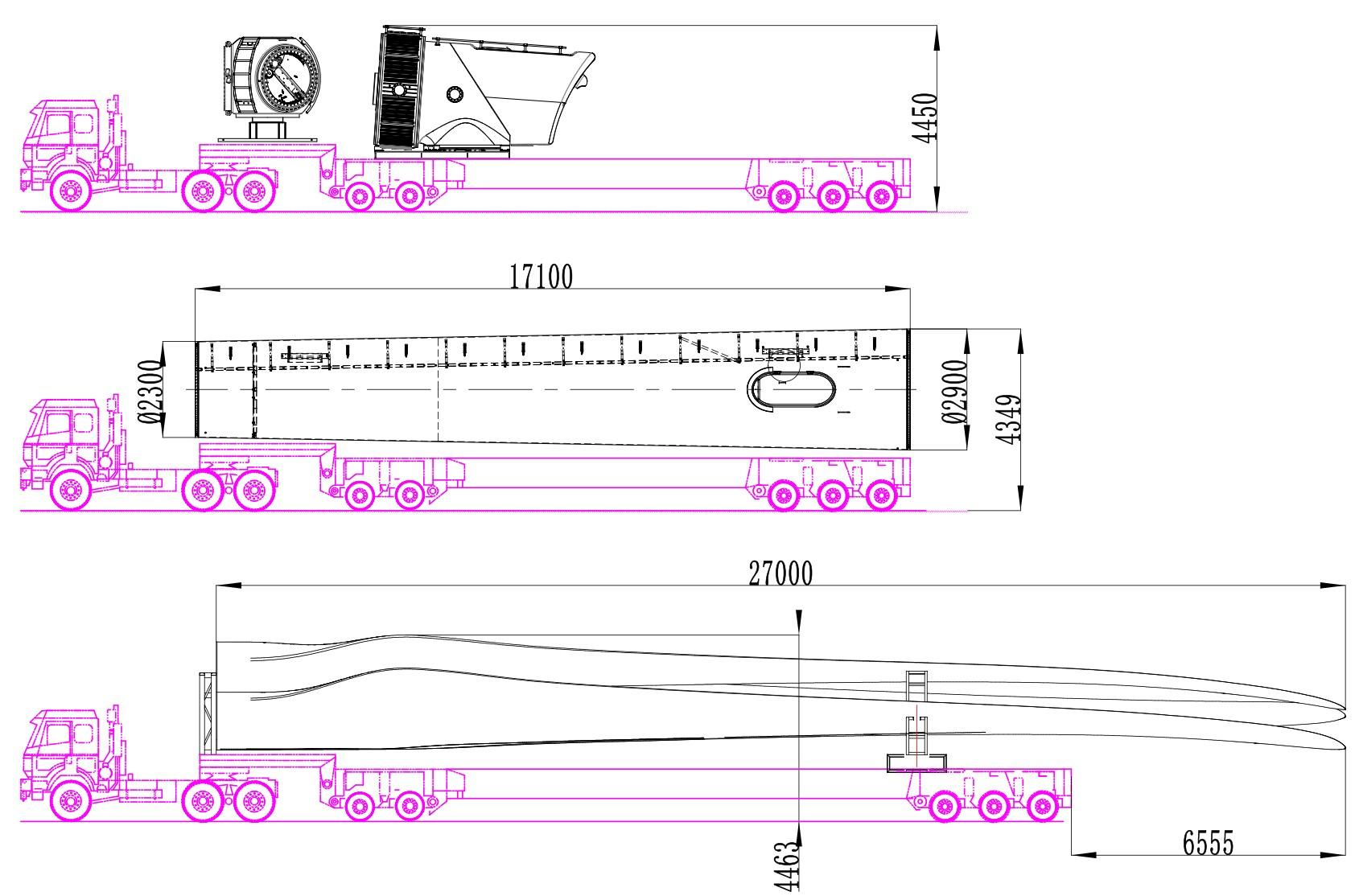

7. Wind turbine transportation

The main components of WTGS are listed and the loading diagram as follows:

No.	Item	Weight (t)	Dimension (m)	Vehicle	Time
1	Ground cage & relatedaccessories	2.5	bulk packaging	ordinary vehicle	1
2	Nacelle & converter	22.7	5.3m*3m*3.2m	17.5m platfomm lorry	1
3	Hub	5.5	2.4m*2.2m*2.2m		1
4	Each section of tower(small parts assembly)	15-22	22.5m*φ2.9	17.5m platfomm lorry	1
5	Blade	7.5	27.5m*2.6m*2.8m

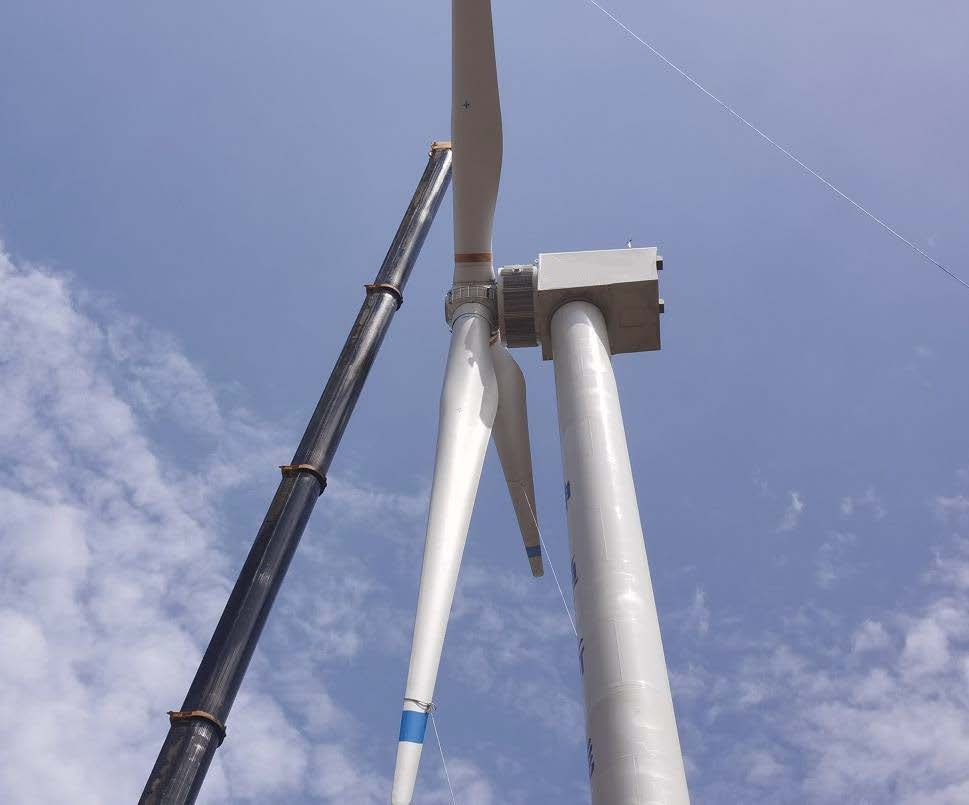

8. Hoisting request

In order to ensure the hoisting time, tower hoisting and wind rotor assembly are carried outsimultaneously. The requirements for the site are very strict. lt is necessary to ensure that there isspace for placement and installation of components. The flat area of the site should be wider tofacilitate the layout of hoisting installation. The tower needs to be placed in a flat area 20 meterslong and 10 meters wide, and the blades need to be placed in a flat area 50 meters long and 40meters wide for assembly of the wind wheel.

The road needs to ensure the passage of 17.5-meter flatbed vehicles. The turning radius isgreater than 20m. The geology must not be soft, otherwise it needs to be paved with sand andgravel.

The list of main tool requirements for each stage of hoisting is as follows:

No.	Name	Specs	Qty	Time	Function
1	Crane	75T	1 pcs	2 days	unloading & blade assembly
2	Crane	260T	1 pcs	2 days	Tower & wind rotor assembly





9. SCADA remote monitoring
Remote monitoring system CUBE3.0 with system functions & features:

• Data transmission: data connection and interaction can be carried out throughwired/wireless networks and access method is flexible and convenient.

• Real-time monitoring: log on the web page anytime & anywhere to observe and analyzereal-time operation status.

• Data logging: record various operation information, meteorological, grid data, electricitygeneration and other types of data.

• Report analysis: statistics of each monitoring quantity and fault records can be made by day,month and year and reports can be generated.

• Failure alarm: failure infomation can be notifed to operation and maintenance personnel ina timely manner by pre-classifying various types of failures.

• Operation & maintenance management: record each operation & maintenance informationand provide operation and maintenance status reminders according to maintenancerequirements.

• Safety and reliability: the server is built on a third-party cloud platform, which the networkservice is safe and reliable.
